Pig Slaughterhouse

You are here: Home1 / Products2 / Pig Slaughterhouse

Pig Slaughterhouse

  • Sort by Price
    • Default
    • Custom
    • Name
    • Price
    • Date
    • Popularity (sales)
    • Average rating
    • Relevance
    • Random
    • Product ID
  • Click to order products ascending
  • Display 15 Products per page
    • 15 Products per page
    • 30 Products per page
    • 45 Products per page
  • This tank is used to collect the blood that is drained from the hanging pigs after they are stabbed. It is located below the pig hanging bloodletting conveyor.

    Stainless steel blood tank

    Read more Show Details
  • This equipment can be used under the pig hanging bleeding conveyor. Its rotating brush roller and the warm water sprayed by the automatic induction spray device can quickly and automatically clean the blood stains and dirt on the pig's body surface passing through it, which can effectively reduce the cross contamination between carcasses during subsequent pre-skinning or scalding. It can also be located under the singeing conveyor 10, used in the process of drying the water on the pig's body surface to improve the subsequent singeing effect and reduce the fuel consumption of singeing.

    Prewashing machine / Predrying machine 「new」

    Read more Show Details
  • This equipment is located below the pig hanging bleeding conveyor. Its rotating brush roller and the warm water sprayed by the spray device can quickly and automatically clean the blood stains and dirt on the pig body passing through it, which can effectively reduce the cross contamination between carcasses during subsequent pre-skinning or scalding.

    Prewashing machine 「traditional」

    Read more Show Details
  • This device is installed at the bifurcation of the circular tube track to change the sliding direction of the tube-rail type bloodletting chain or the tube-rail type pulley fork hook on the rail surface.

    Pneumatic tube-rail turnout

    Read more Show Details
  • The device is installed on the suspended scalding conveyor and connected to the buffer track behind the suspended bleeding conveyor. It is used to lift the pig carcass from the buffer conveyor to the large hook of the conveyor chain in an orderly manner to complete the subsequent scalding operation.

    Pneumatic hoisting and getting into the pothook device

    Read more Show Details
  • This scalding tank must be used with a hanging scalding conveyor. The conveyor chain drags the pig carcasses hanging below it into the hot water scalding tank together, and the carcasses are scalded in the process of passing through the scalding tank. This scalding method is a horizontal or vertical mixed scalding method, which is coherent and efficient, with good scalding effect, and is suitable for large-scale slaughtering and processing plants.

    Canal-type hot water tank

    Read more Show Details
  • The tunnel must be used with a suspended scalding conveyor. The conveyor chain drags the pig carcasses suspended below it into the steam tunnel. The carcasses are continuously heated by the hot water sprayed from the spray device at the top of the tunnel and the saturated steam from the bottom of the tunnel during the passage through the tunnel, thereby achieving the scalding effect. This scalding method is a combination of vertical steam and hot water, which is coherent and efficient. The scalding effect is good, which can effectively avoid cross-infection between carcasses and is suitable for large-scale slaughtering and processing plants.

    Steam and shower type scalding tunnel

    Read more Show Details
  • The tunnel must be used with a hanging scalding conveyor. The conveyor chain drags the pig carcasses hanging below it into the shower tunnel. The dense hot water nozzles on both sides of the tunnel spray and heat the pig carcasses in a three-dimensional manner, thereby achieving the effect of scalding. This scalding method is a vertical pure spray scalding method, which is continuous and efficient, with good scalding effect, suitable for large slaughtering and processing plants.

    Shower type scalding tunnel

    Read more Show Details
  • This device is installed on the suspended scalding conveyor, which can remove the unloaded pipe rail type bleeding chain from the large hook of the conveyor chain and slide it back to the pipe rail type hoist (the initial activation point) along the return track to allow it to be recycled.

    Unhooking and entering rail device

    Read more Show Details
  • Stainless steel hot water tank, clean water tank | tra The stainless steel hot water tank (left picture) is used in the scalding process before depilation of live pigs. The water in the tank is heated by steam, and a heat insulation layer is set around the tank. The stainless steel clean water tank (right picture) is used in the cleaning process of residual hair and blood stains on the surface of depilated pigs, and can also reduce the temperature of the pigs. This hot water tank and clean water tank are often used in conjunction with traditional depilation machines with scooping rakes.

    Stainless steel hot water tank, clean water tank “traditional”

    Read more Show Details
  • This equipment is used in the depilation process of small pigs. The scalded pig carcasses are scooped from the scalding tank by the machine rake and put into the machine. Under the joint scraping and friction of the three sets of rapidly rotating depilatory rollers, the carcasses are continuously thrown up and depilated while tumbling. This equipment adopts intermittent depilation and is suitable for traditional small slaughtering and processing plants. It is often used in conjunction with scalding tanks, clean water tanks or horizontal scraping flat conveyors.

    100 Type debristling machine

    Read more Show Details
  • This equipment is used in the depilation process of pigs of different sizes, large, medium and small. After the scalding, the pig carcass is unloaded by the unloader and slides vertically (buttocks in front) along the chute into the U-shaped channel of the depilation machine (composed of multiple sets of U-shaped support frames with special structures). After that, under the joint scraping and friction of the large and small depilatory rollers rotating rapidly, the carcass is continuously thrown up and depilated during rolling; at the same time, the carcass is pushed toward the equipment outlet under the double forward thrust of the large depilatory rollers (arranged in a spiral shape) and the U-shaped support frame. This equipment adopts the depilation method of feeding pigs, depilating pigs and discharging pigs at the same time, which is coherent and efficient, and is suitable for large and medium-sized modern slaughtering and processing plants. It must be used in conjunction with the suspended scalding conveyor, dynamic unloader, pig inlet and outlet, and transition chute.

    Spiral debristling machine 「new」

    Read more Show Details
  • This equipment is installed under the spiral hair shaving machine to receive the pig hair falling from the hair shaving machine and convey the pig hair to the storage tank of the hair blowing machine. It is used as a supporting equipment for the spiral hair shaving machine.

    Pig’s hair conveyor

    Read more Show Details
  • The equipment is installed below the outlet of the pig hair conveyor to collect pig hair and use compressed air to blow the hair and water mixture in the tank along the pipeline to the pig hair room periodically. It is used as a supporting equipment for the spiral hair removal machine. It can also be installed in the white organ processing room for the air delivery process of gastric and intestinal contents.

    Pig’s hair blower / Gastric contents blower

    Read more Show Details

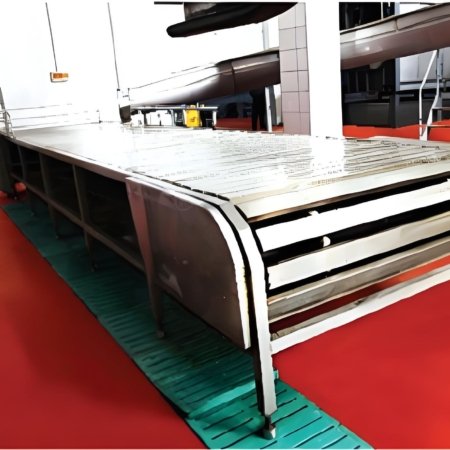

  • This equipment is used to receive and convey the dehaired pigs that slide out of the dehairing machine, so that workers can shave the remaining hair on the moving carcasses and put their legs on the fork hooks and hang them on the elevator track. It is often used in conjunction with the elevator.

    Horizontal shaving conveyor

    Read more Show Details
Page 2 of 3123
